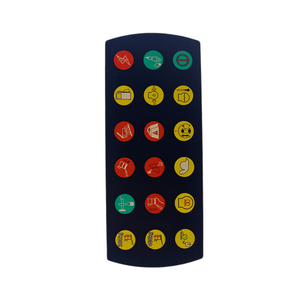

Graphic overlay

1. Graphic overlays are crucial for communicating a product's quality and unique value, serving as the most visual component of product design.
2. They act as the outermost layer of the keypad, displaying cosmetic features like color, text display windows, and key functions.
3. Overlays serve as intermediaries between users and machines by depicting functions without conductive traces or circuitry.
4. Design flexibility increases when overlays are fully integrated into the user interface, allowing for customization and combination with switch and touchscreen technologies.
5. Integrated graphic overlays can be backlit, embossed, or texturized to enhance usability and aesthetics.
6. Using overlays with circuits can simplify the interface design process, enabling the creation of various final looks from the same electronic interface unit.
7. Benefits of graphic overlays include space and weight reduction, thermal management, ease of assembly and repair, and cost-effectiveness.
8. Graphic overlays are versatile and suitable for applications such as wearables, dynamic systems, and solutions requiring effective thermal management.
